FG500 Flywheel Grinding Machine - Vertical Surface Grinder for Automotive Flywheel Resurfacing

FG500 Flywheel Grinding Machine

The Beacon FG500 is a dedicated vertical surface grinding machine engineered for professional automotive flywheel resurfacing and repair. With its robust circular column design, dual-speed round worktable, and reinforced square column construction, the FG500 delivers exceptional rigidity, machining accuracy, and cutting efficiency for flywheels up to 500mm in diameter.

Key Features

• Vertical Surface Grinding Design: Round table vertical grinder configuration with grinding head and feeding box that rotate around the circular column — enabling precise grinding of flywheels across different diameters
• Reinforced Rigidity: Square column reinforcement behind the circular column significantly enhances structural rigidity and long-term machining accuracy stability
• Dual-Speed Worktable: Selectable 17 RPM (slow) or 34 RPM (fast) table speeds allow operators to optimize grinding parameters based on flywheel size for best surface finish results

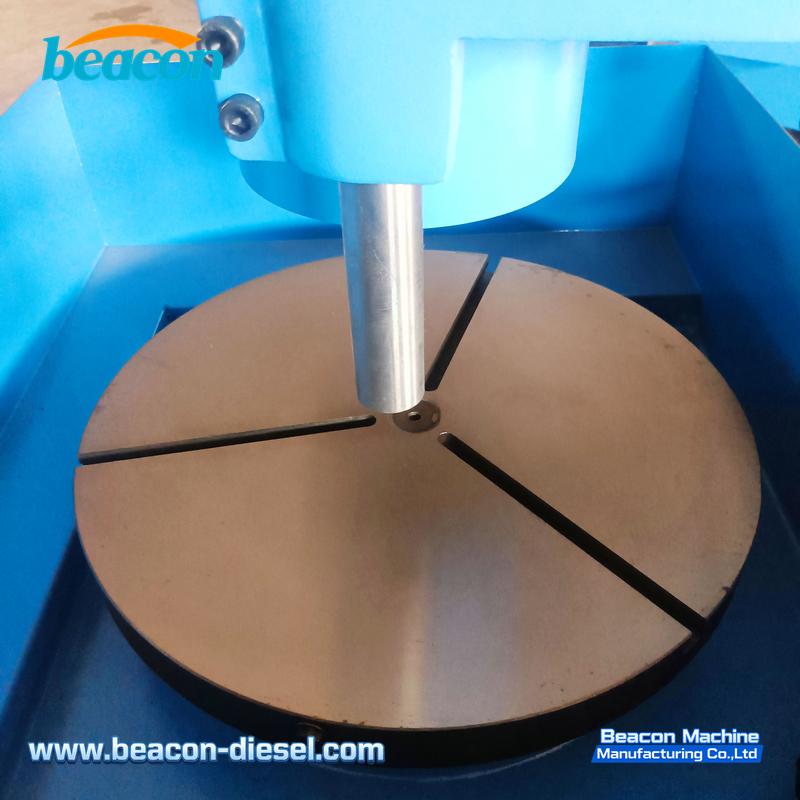

• Wide Capacity: Accommodates flywheels up to 500mm in diameter on a 450mm diameter worktable with 200mm maximum spindle-to-table clearance
• Integrated Cooling System: Built-in pull-type water tank provides efficient grinding and cooling, maintaining workpiece temperature while keeping the machine exterior clean and tidy
• High-Speed Grinding: 2800 RPM grinding wheel rotation speed powered by a 3KW motor delivers fast cutting speed and high work efficiency
• Simple Operation: Straightforward controls and easy maintenance make this an ideal specialized equipment for flywheel repair workshops
• Sturdy Construction: Net weight of 690kg (750kg gross) ensures vibration-free, stable operation during precision grinding

Applications

• Automotive flywheel resurfacing and grinding
• Clutch flywheel surface restoration
• Vehicle transmission system repair workshops
• Engine rebuilding and remanufacturing centers
• Commercial vehicle and passenger car flywheel maintenance

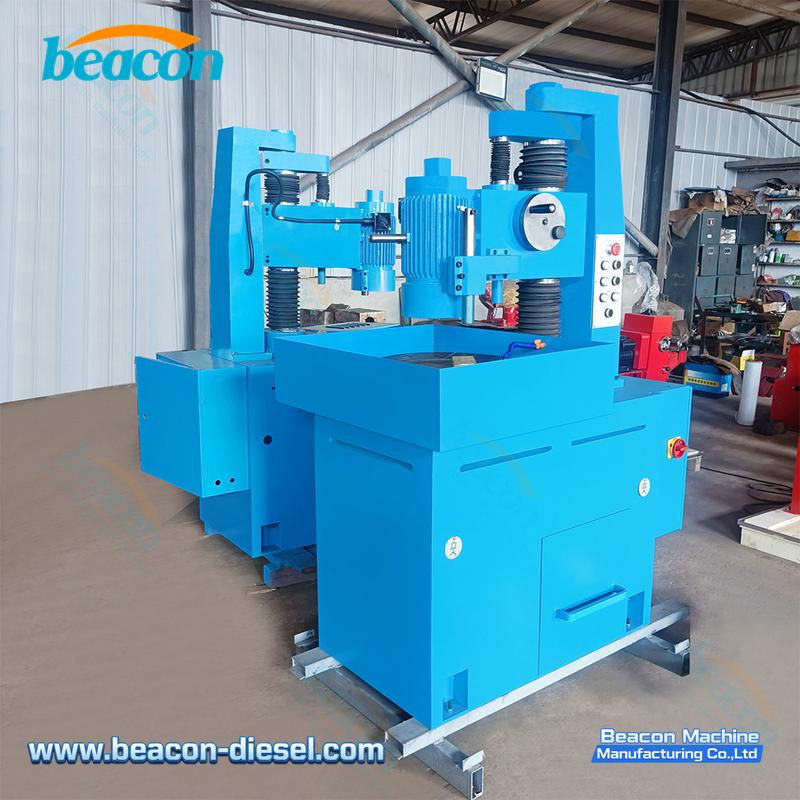

FG500 Flywheel Grinding Machine - Complete Machine Side View

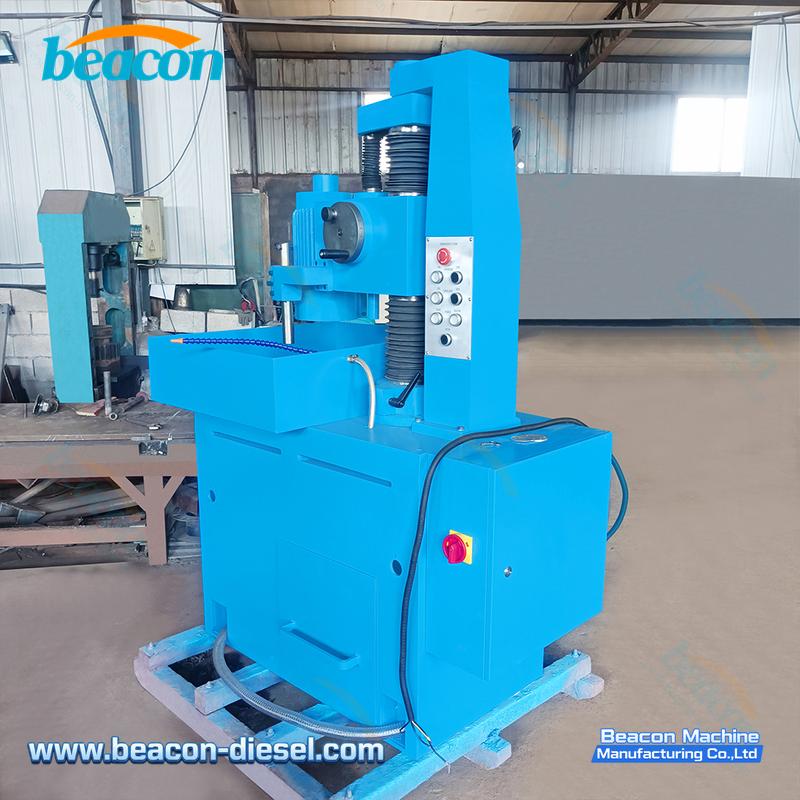

FG500 Flywheel Grinder - Workshop Machine Overview with Circular Column
