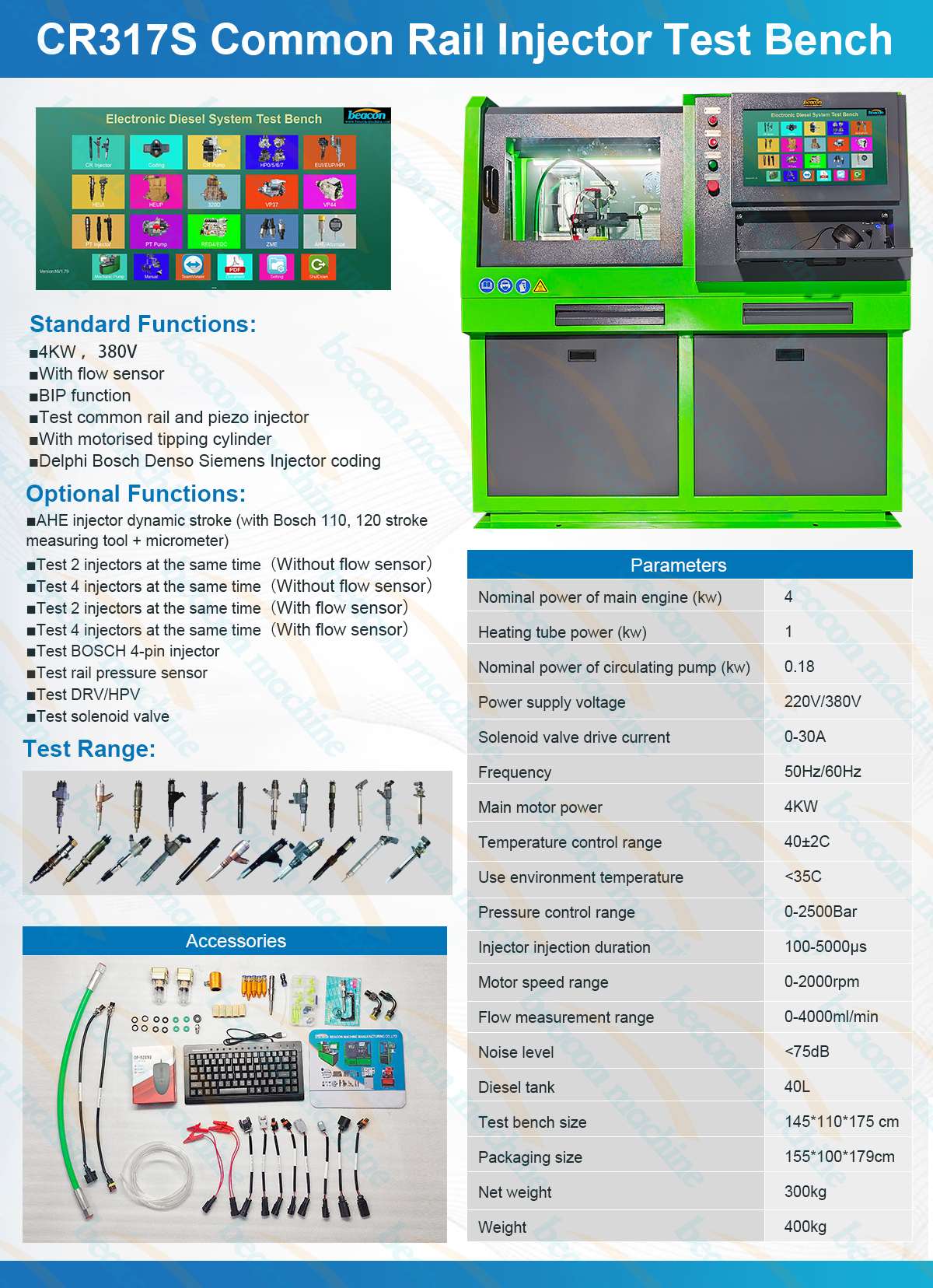

Items

Paramete

1.

Nominal power of main engine (kw):

4

2.

Heating tube power (kw):

1

3.

Nominal power of circulating pump (kw):

0.18

4.

Power supply voltage:

220V/380V

5.

Solenoid valve drive current:

0-30A

6.

Frequency:

50Hz/60Hz

7.

Main motor power:

4KW

8.

Temperature control range:

40±2C

9.

Use environment temperature:

<35C

10.

Maximum pressure of high pressure system:

240Mpa

11.

Pressure control range:

0-2500Bar

12.

Injector injection duration:

100-5000μs

13.

Motor speed range:

0-2000rpm

14.

Flow measurement range:

0-4000ml/min

15.

Noise level:

<75dB

16.

Diesel tank:

40L

17.

Fuel tank computer:

two-way display ofmeasuring cylinder

18.

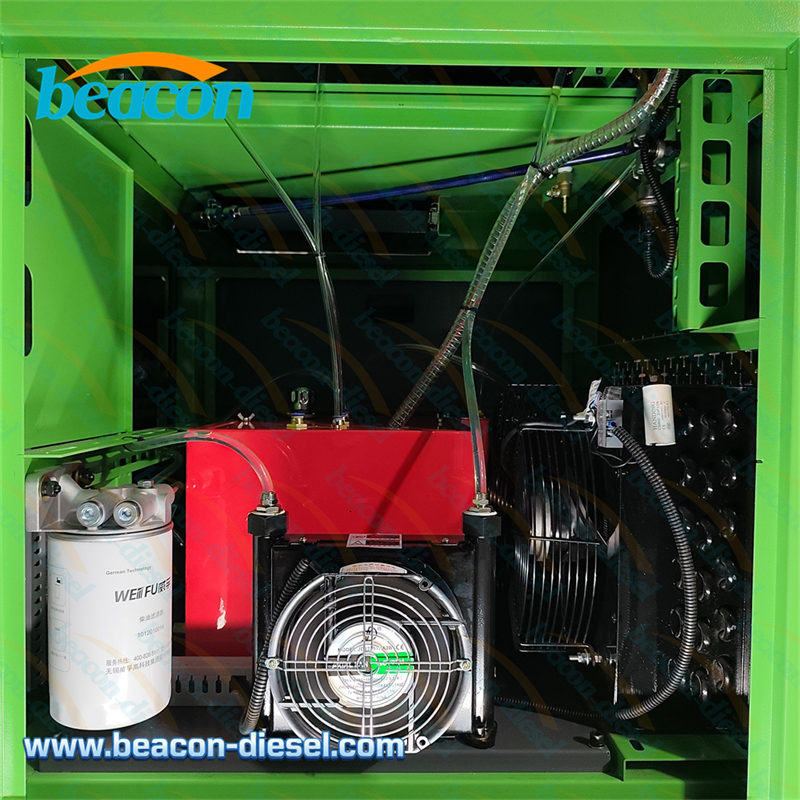

Oil temperature control method:

heater and forced circulation air cooling system

19.

Test bench size:

(L*W*H): 145*110*175 cm

20.

Packaging size:

(L*W*H): 155*100*179cm

21.

Net weight(kg):

300kg

22.

weight (kg):

400kg
